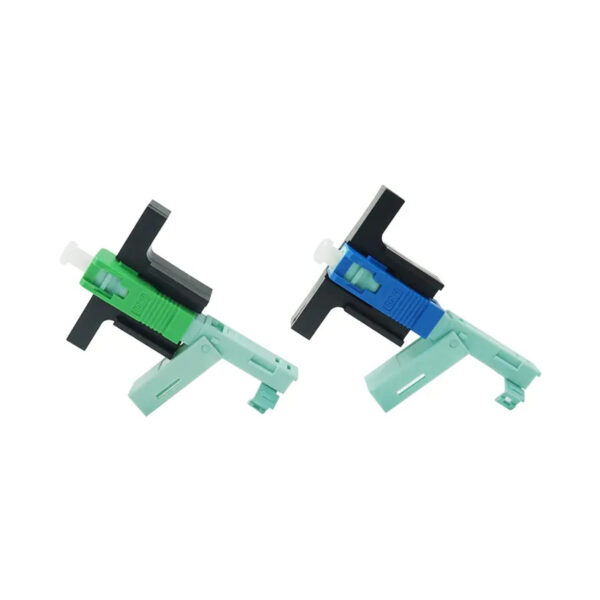

Product description
- Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
- Double V groove structure design, high stability and reliability of fiber connection;
- Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
- Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
- Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
Technical data:
| Item | Unit | UPC | APC |
| Insertion Loss | dB | ≤0.25 | ≤0.3 |
| Return Loss | dB | ≥50 | ≥55 |
| Tensile strength | N/2min | ＞30 | |
| Work temperature | ℃ | -40～+85 | |
| Repeatability | dB | ≤0.2 | |
| Repeated assembly | times | ≥10 | |
| Mate-demate | times | ≥500 | |
| Cable type | mm | 2.0×3.0 & 2.0×1.6 drop cable | |
| Product length | mm | 53/55/60mm | |
