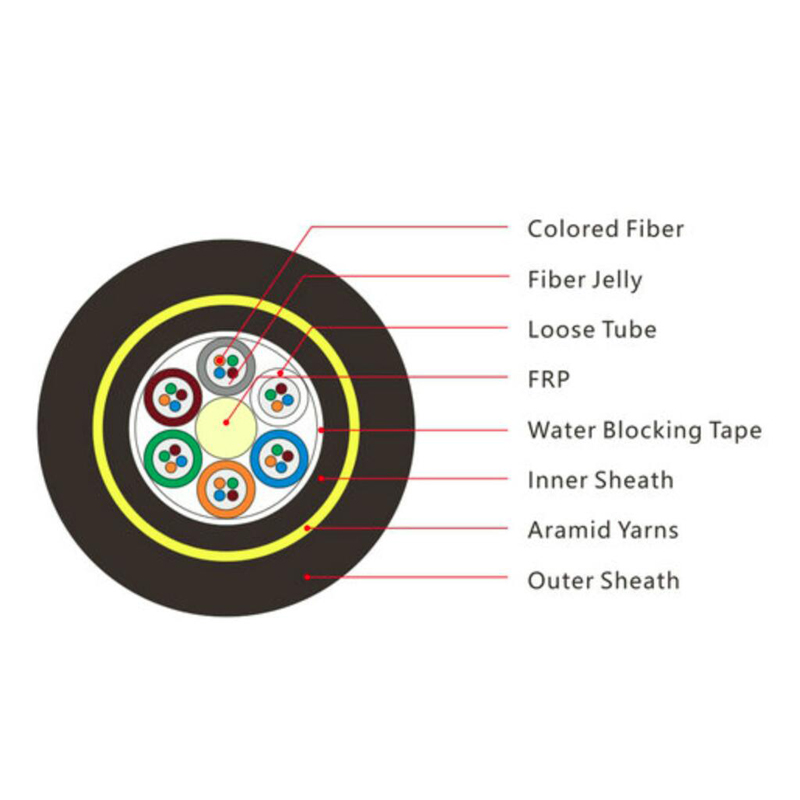

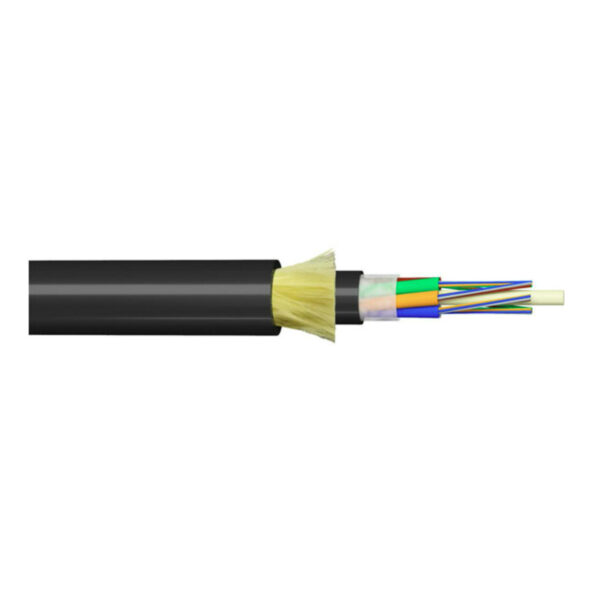

ADSS Double Jacket Fiber Optic Cable

Description:

Long Span ADSS provides reliable self-support performance for up to 1500 meters. Each Long Span ADSS cable is custom engineered for optimum placement on utility towers and to operate under full weather load, ensuring safe reliable lifetime performance. For installation on high-voltage lines up to 275 KV, an optional track-resistant jacket prevents dry-band arcing damage. Fiber counts is available up to 288 fibers.

Features:
Long Span Installation & Use
Tailored designs span distances up to 2,500’ (760 m) without interrupting power
Higher count designs utilize 24 fiber per tube to reduce environmental load
Matching pole attachment hardware (dead-ends, suspension clamps)

Application:

Instillation in aerial selft supporting environment for long haul communication.LAN, especially suitable for the situation of high requirements to lateral pressure resistance.

Product Standard

ADSS cable complies with Standard IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850			≥500MHZ·km	≥500MHZ·km
（Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
